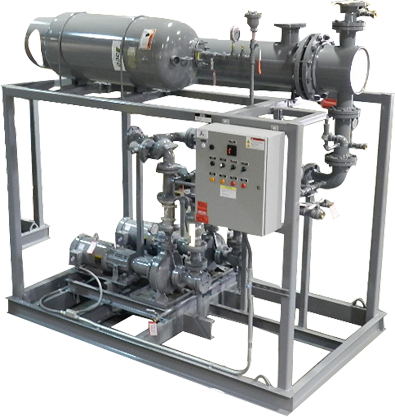

Heat Transfer System

BENEFITS

  • Prefabricated and factory tested
  • 3rd party UL/C-UL listed system
  • ASME section IX certified pipe welders
  • AWS D1.1 certified structural welders
  • UL 508 labeled power and controls
  • Constant and variable speed designs
  • Single source responsibility
  • Start-up and field training by factory trained controls engineers (optional)
  • Every system is electrically and hydrostatically tested before shipment
  • 5 Standard configurations available

APPLICATIONS

  • Commercial
  • Industrial plants
  • Hospitals
  • Institutional
  • Process

WATER SIDE STANDARD FEATURES

  • Triple duty valves or check valves
  • Suction diffusers or wye-strainers
  • ASTM A36 Schedule 40 piping
  • 9” scale thermometer
  • Relief valve
  • Air separators
  • Water make-up lines (backflow preventer option)
  • Air vents
  • Expansion tanks

STEAM SIDE STANDARD FEATURES

  • Direct acting or electrically actuated steam control valves
  • Single or dual heat exchangers
  • ASTM A36 Schedule 40 piping
  • Relief valves
  • Bypass lines
  • Wye-strainers
  • Multi-turn isolation valves (gate valves)

CONDENSATE SIDE STANDARD FEATURES

  • Wye-strainers
  • Steam traps
  • Multi-turn isolation valves (gate valves)
  • ASTM A36 Schedule 80 piping
  • Motor driven and pressure powered condensate return units
  • Relief valves

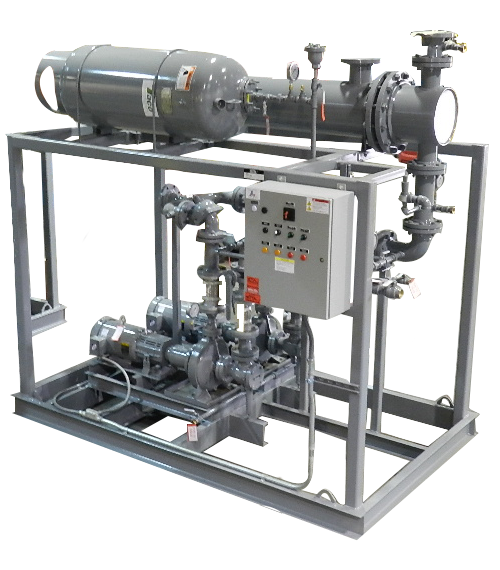

Heat Transfer System by Tigerflow
