OSU ENGIE Building Heat Transfer System

OSU ENGIE Heat Transfer System

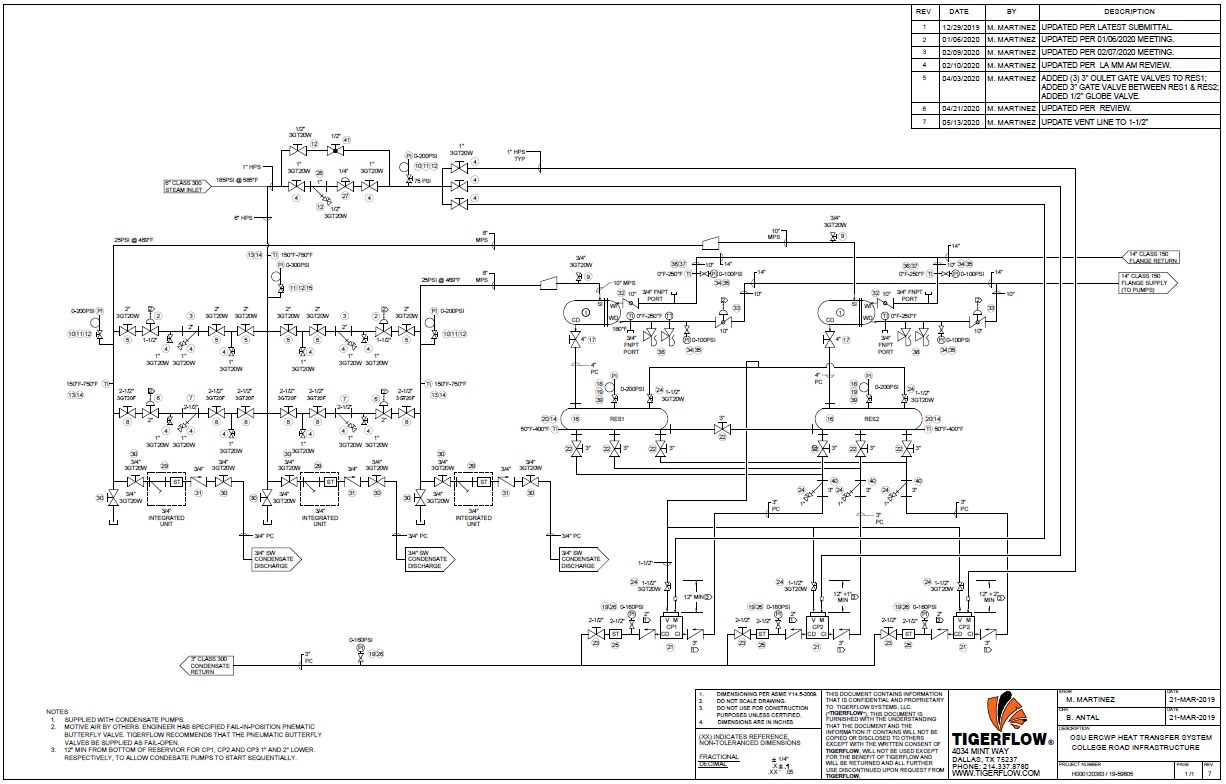

Two-skid heat transfer pumping package design; including steam intel and control valves, condensate reservoir and socket weld condensate piping.

Pump Skid

  • Aurora 3804 – 60 HP End Suction Pumps; 1900 gpm each.
  • 14” Suction and Discharge Manifolds and 10” Branches
  • Allen-Bradley NEMA 4 Custom Design Variable Frequency Drives

Heat Transfer Skid – Steam Side

  • Split-skid design for installation in an existing building
  • S24 Thrush Shell & Tube Heat Exchangers; Stainless Steel tubes construction; 11,000 lbs./hr.
  • 1/3-2/3 Steam Control Valve Assembly
  • 1-1/2” and 2” Globe Control Valve; Spring Return; Class 300 Flange Connections
  • 1 through 2-1/2” Sharpe Gate Valves
  • Socket weld piping on condensate return lines
  • ASTM A312 Condensate Reservoir
  • Pressure Powered ASME Watson McDaniel PMPF Condensate Pumps
  • High-Pressure Watson McDaniel Steam trap
